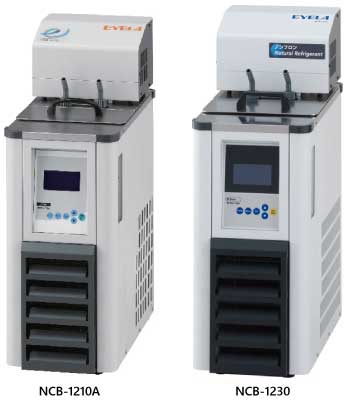

Low temperature bath NCB-1210A・NCB-1230

Compact tabletop design with exceptional cost performance

  • The NCB-1230 is an environmentally friendly non-CFC chiller that uses the R290 non-CFC refrigerant.
  • Useful for temperature control of jacketed columns and electrophoresis, as well as microtube reactions using the built-in water bath.
  • Suitable for diverse applications such as chemical reactions, reagent preparation, analytical instruments, viscometers, and external circulation.
  • Compact and space-saving design allows for easy placement either on or under a laboratory bench.
  • When communicating with a PC, you can perform remote operations such as fixed value operation and step operation, as well as control and recording of temperature trend data, via the dedicated software EPMon2025.
  • By using the optional external temperature sensor, you can perform temperature control corresponding to external devices or sample temperatures.

Environmentally friendly non-fluorocarbon chiller (Model NCB-1230)

Products using non-fluorocarbon refrigerants make a significant contribution to reducing global warming. Unlike conventional products using fluorocarbon refrigerants, they have an ozone depletion potential (ODP) of zero and an extremely low global warming potential (GWP).

Switching to non-fluorocarbon refrigerants provides multiple benefits, not only in terms of environmental protection but also in other areas

Point 01

Point 02

Point 03

Eliminates the burdens of managing fluorocarbon-containing equipment—such as quarterly simplified inspections, routine checks, and record-keeping requirements. (Varies by country.)

Eliminates the disposal costs and administrative burden associated with fluorocarbon-containing equipment. (Varies by country.)

Contributes to reducing greenhouse gas emissions and helps achieve decarbonization goals.

Control and recording are possible via dedicated software

  • The EPMon2025 (EYELA Program Monitor) simple measurement and control software enables control and recording such as temperature data, alarm history, set temperature operation, and step mode operation (with no limit on the number of steps).
  • The communication cable (Cat. No. 269050) is available as an optional accessory.
  • Click here for EPMon2025 (EYELA Program Monitor).

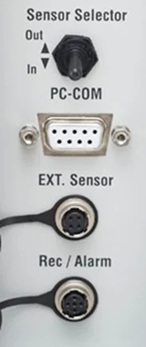

Convenient terminals and dial

Equipped with various output terminals as standard

Variable independent overheat protector

It is equipped as standard with an external temperature sensor terminal that enables control based on the temperature of the circulation destination (internal temperature control), an analog output (lead wire option) for a recorder to record temperatures, and an alarm output terminal.
Using the optional external temperature sensor, you can perform temperature control corresponding to external devices or sample temperatures.

Equipped with a variable independent overheat protector as standard, which can be set according to the operating temperature.

Specifications

Product nameLow Temperature Bath
ModelNCB-1210ANCB-1230
Cat. No.266650287900
Circulation methodClosed circulation system
Temp. control range-30 to 95℃
Temp. accuracy±0.1°C or less
External circulation capacity (50/60Hz)Max. flow rate: 4.5/5.0 L/min
Max. lifting height: 1.2/1.7m		Max. flow rate: 9.3/11 L/min
Max. lifting height: 4.3/6.3m
Cooling capacityLiquid temp. 10℃：180W (154kcal/h)Liquid temp. 10℃：200W (172kcal/h)
Temp. controlPID control with non-contact (zero-cross) output
Setting / DisplayMembrane keypad input / digital display (resolution 1℃)
Timer functionAuto-start, Auto-stop
Program functionsStep mode
Other functionsAuto-tuning, temperature display compensation, power failure recovery settings
Safety featuresUpper/lower temperature limit alarms, Low water level detection, Overshoot detection, Control system abnormality, Sensor abnormality, High-pressure switch, Refrigeration unit overload relay, Adjustable independent over-temperature protector, Earth leakage breaker.
External input / outputPC communication (RS-485, asynchronous serial communication), External temperature sensor terminal, Recorder output terminal 1 to 4VDC (−40 to 110°C), Alarm output terminal (voltage-free contact [a-contact], 250VAC / max. 3 A).
Recorder output1 to 4VDC (-40 to 110℃)
Temp. sensorPlatinum resistance thermometer Pt100Ω
Heater500W (Stainless steel)
Stirring in bathWater jet flow stirring
Bath materialStainless steel
Inner bath dimensions (mm)140W x 260D x 150H
Effective bath dimensions (mm)110W x 80D x 130H
Bath capacityApprox. 4L
External circulation nozzleOuter / inlet ports 11mm OD hose port
Cooling coilStainless steel
Refrigerator / RefrigerantAir-cooled, output 300W・R507AAir-cooled, output 400W・ R209 (non-CFC)
Ambient temp. range5 to 35℃
Power input12A 1.2kVA13A 1.3kVA
Supply voltage100VAC 50/60Hz
Outer dimensions (mm)210(225)W x 433(530)D x 600H
WeightApprox. 32kgApprox. 34kg
  • Performance values are based on an ambient temperature of 20°C, rated power supply voltage, 50Hz, and no-load conditions.
  • When setting the liquid temperature below 10°C, use an anti-freeze fluid.
  • The temperature control range is -20 to 95°C when the ambient operating temperature is 30°C or higher.
  • Depending on the conditions, the refrigerator may perform ON-OFF operation around the set temperature of 40 to 65°C, which may reduce the temperature control accuracy (approximately ±1.5°C).
  • A flow stop valve is not equipped. Please purchase it as an option.
  • Dimensions in parentheses ( ) include protrusions.

Data

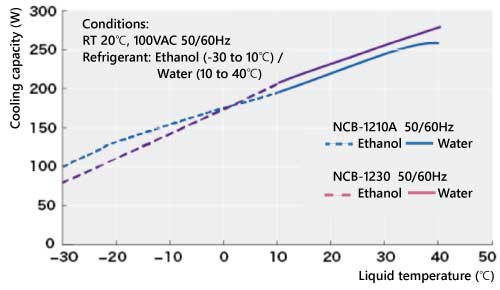

Cooling capacity curve

Cooling capacity varies depending on operating conditions such as room temperature, power supply voltage, type of circulating fluid, and connected piping.

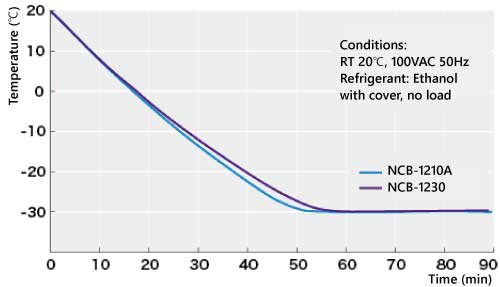

Cooling curve

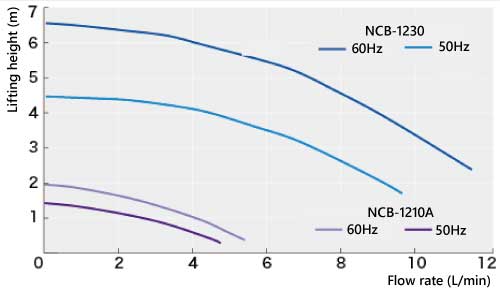

Circulation capacity curve
Heating curve

Options

Product nameModelCat. No. Remarks
External temperature sensorSTP-200113620It is used to control the bath temperature in response to the temperature of the circulation destination or the sample temperature.
*When using an external temperature sensor, control may not be possible due to conditions such as a large heat capacity of the sample or low thermal conductivity of the vessel. An initial overshoot may occur.
Cold insulation hose—1126901m: 9mm ID (applicable temperature: -35 to 80°C)
—1127002m: 9mm ID (applicable temperature: -35 to 80°C)
—1744205m: 9mm ID (applicable temperature: -35 to 80°C)
Lead wireROL-100114230This is a connection lead wire used for both temperature output and alarm output.
ROL-500225890
ROL-1000225900
Silicone tubing—112720 9mm ID x 13mm OD, length 5m (applicable temperature: -50 to 180°C)
Pt screw port—216450Use this when connecting metal piping.
Standard: Tapered female thread Rc3/8
Communication cable—269050This is a cable for connecting the NCB series to a computer. Dedicated for EPMon, 9p-USB
